Overview

Store and consume energy on a deferred basis

Use self-generated solar energy on demand with the help of UPS storage systems

With the UPS storage system, self-generated electricity from a solar power system is used exactly when it is actually needed - at any time of day or night. The new technology is particularly well suited for use in industrial plants, warehouses with large roof areas and hospitals. Companies increase the security of IT components with the UPS function and also get the benefit of energy storage from the self-produced solar energy. The storage system reduces the energy demand from the public grid, which saves energy costs and also reduces CO2 emissions.




Products

Our products

PLC/PV

Our services in the field of UPS storage systems

  • Consulting and technical planning
  • Installation and assembly
  • Commissioning
  • Documentation
  • Maintenance
  • 24h service / 356 days

General information about UPS storage systems

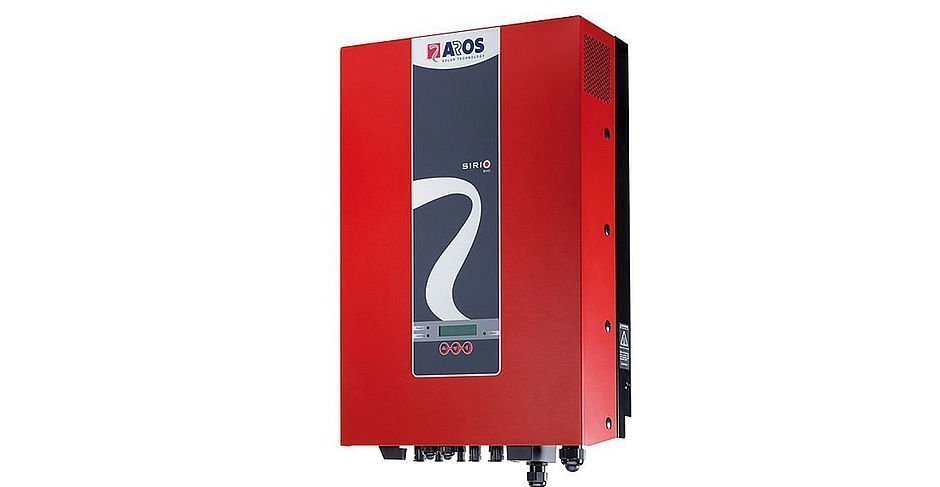

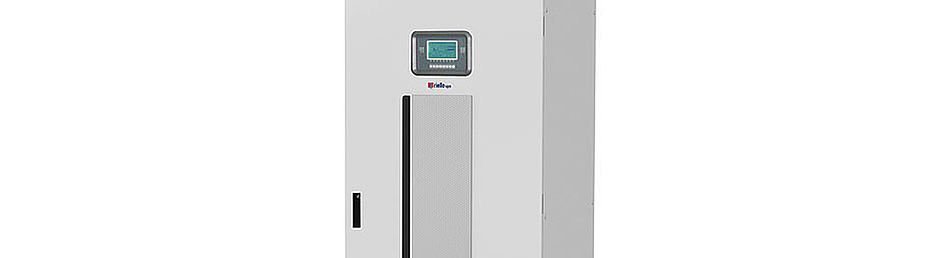

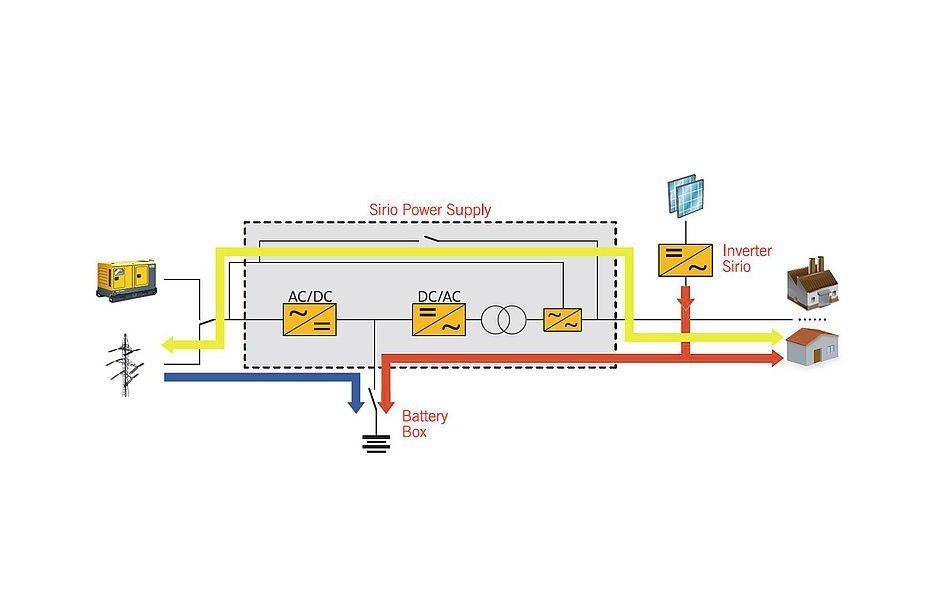

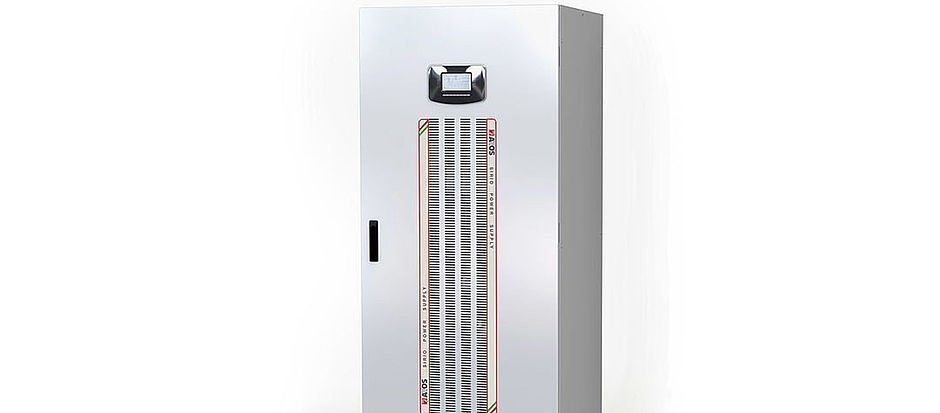

The Sirio-Power_Supply (SPS) UPS storage system is available from 10 - 800 kVA and was developed in conjunction with us by Aros Riello - an international manufacturer of UPS and inverter systems. Coupled with a powerful solar battery, the SPS system can supply consumers (e.g. industrial plants, hospitals and logistics halls) with self-produced solar power around the clock. The users themselves determine the capacity that is drawn from the battery until the UPS switches back to the normal grid. The photovoltaic system only feeds surplus electricity into the grid when the battery storage is fully charged. If the utility grid fails, the solar panels continue to supply power. If the solar power produced is not sufficient, the battery supplies the missing energy.

Application fields

  • Commercial and industrial
  • Data centers
  • Hotel business
  • Shopping centers
  • E-charging stations
  • Multi-family houses
  • Hospitals
  • CHP plants



Technical Features

  • Power: 10-800kVA 3-phase
  • UPS function (uninterruptible power supply)
  • Useable with/without photovoltaic energy for peak load coverage
  • Optimal for peak load coverage (peak shaving)
  • Even for harshest conditions

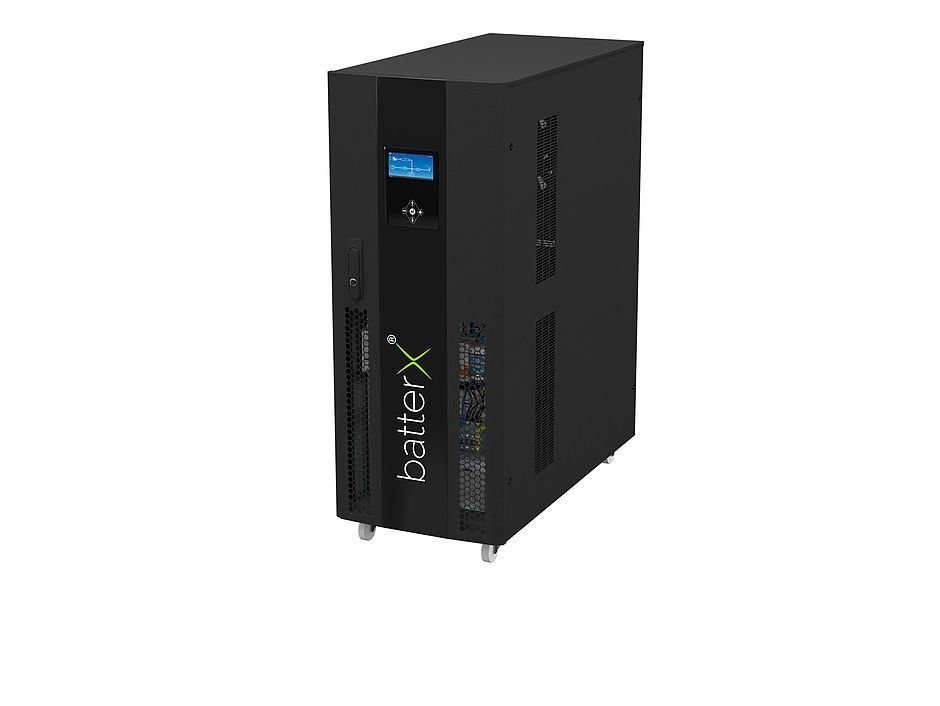

BatterX business storage system

Our Services:

  • Consulting and technical planning
  • Installation and assembly
  • Commissioning
  • Documentation
  • Maintenance
  • 24h service / 356 days



Advantages of BatterX Energy Storage

  • Energy can be taken autonomously even during power failure
  • Uninterruptible UPS function
  • Net filter function due to online technology
  • Peak load coverage (peak shaving)



General information about the BatterX energy storage system

With the BatterX energy storage system, solar energy can be fed directly into the battery DC link. This ensures the high efficiency of the system. Regardless of the available energy source, the storage system regulates the flow of electricity and provides consumers with uninterrupted power at any time of the day or night. The three-phase UPS storage system is available from 10 - 300 kVA and can be paralleled up to 8 times.

Application fields

  • Commercial and industrial
  • Data centers
  • Hotel business
  • Shopping centers
  • E-charging stations
  • Multi-family homes
  • Hospitals
  • CHP



Technical Features

  • UPS energy storage from 10 kVA to 300 kVA
  • DC/DC Converter 10/40 kW modular (8 units possible in parallel)
  • Individual power storage size up to 2 MW currently exclusively using lead-carbon batteries [720 VDC]
  • High efficiency
  • Online app

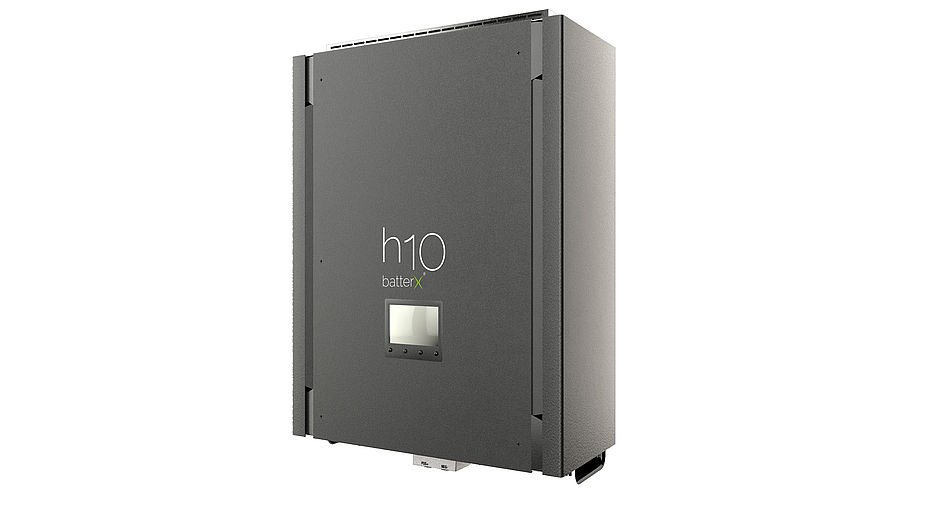

BatterX home storage system

Advantages of the BatterX Home Storage System

  • Combination of hybrid inverter and UPS storage system
  • Energy can also be taken autonomously in the event of a power failure
  • UPS function in the event of a power failure (island operation)
  • Network recovery possible



General information about BatterX Homespeeders

BatterX homes storage system stores solar energy directly in the building with smaller photovoltaic fields and consumes the energy with a time delay. This involves connecting a PV system of 4.5 - 15 kWp to the hybrid inverters. When the storage is fully charged, the surplus energy can be fed back into the grid. LiFePo or lead-carbon storage of up to 50 kWh is available as power storage.

Application fields

  • Single- and multi-party houses
  • Small commercial enterprises
  • Small farms



Technical features

  • UPS energy storage from 3 to 10 kVA
  • 1 and 3-phase
  • Online app



Wattsonic Heimspeicher

Our UPS storage system services

  • Consulting and technical planning
  • Installation and assembly
  • Commissioning
  • Documentation
  • Maintenance
  • 24h service / 356 days



General information about the SunEnergyBox

Harness the power of the sun to protect your home. Turn your home into a safe and modern haven by pairing Wattsonic with your PV system as well as all your other appliances.

With battery capacity ranging from 6.9 to 18.4kWh in 2.3kWh increments, and inverter capacity of 6KW/8KW/10KW/12KW, the Wattsonic Li-HV storage system offers superior flexibility in system design and can be installed on the wall or in a stack.





application fields

  • Single- and multi-party houses
  • E-cars



Features

Uninterruptible power supply (UPS) safely supplied at all times:

  • Filtering of the power: No defective devices due to unstable mains supply.
  • Safe against power failure: Thanks to the switching time of < 10 milliseconds, you do not have to interrupt your cozy NETFLIX evening even despite blackouts.
  • Usability: Keep an overview of the energy flows in your home always & easy with the Wattsonic APP.
